Name: Tensile Compression Bending Test Geotextile Electronic Force Test Bending Tensile Testing Machine
Brand: Tensile Compression Bending Test Geotextile Electronic Force Test Bending Tensile Testing Machine
SKU: WDW-5 WDW-10 WDW-20 WDW-50 WDW-100 WDW-200 WDW-300, WDW-5 WDW-10 WDW-20 WDW-50 WDW-100 WDW-200 WDW-300
Price: 1 USD
Availability: InStock
Rating: 4.7 (198 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Warranty: 1 Year

Customized support: OEM

Model Number: WDW-5 WDW-10 WDW-20 WDW-50 WDW-100 WDW-200 WDW-300

Power: Electronic

Product name: Universal Tensile Strength Testing Machine

Application: Tension Compression Bending Flexural Test

Model: WDW-5 WDW-10 WDW-20 WDW-50 WDW-100 WDW-200 WDW-300

Max load: 10kN, 20kN, 50kN,100kN, 200kN, 300kN

Testing Sample: metal, steel, plastic, rubber, matrix composite, geotextile

Power supply: AC220V/AC380V

Standard: ASTM A370, ISO6892, ISO7500-1, EN 10002-4

Accuracy: 1 Grade/0.5 Grade

Brand: GT-GoldenTech

Certificate: ISO, CE

Informazioni di base

Certificazione: ISO, CE

Model Number: WDW-5 WDW-10 WDW-20 WDW-50 WDW-100 WDW-200 WDW-300, WDW-5 WDW-10 WDW-20 WDW-50 WDW-100 WDW-200 WDW-300

Termini di pagamento e spedizione

Packaging Details: Outside package: standard export wooden case, Tensile Compression Testing machine

Supply Ability: 200 Set/Sets per Month Tensile Compression Testing machine

Descrizione di prodotto

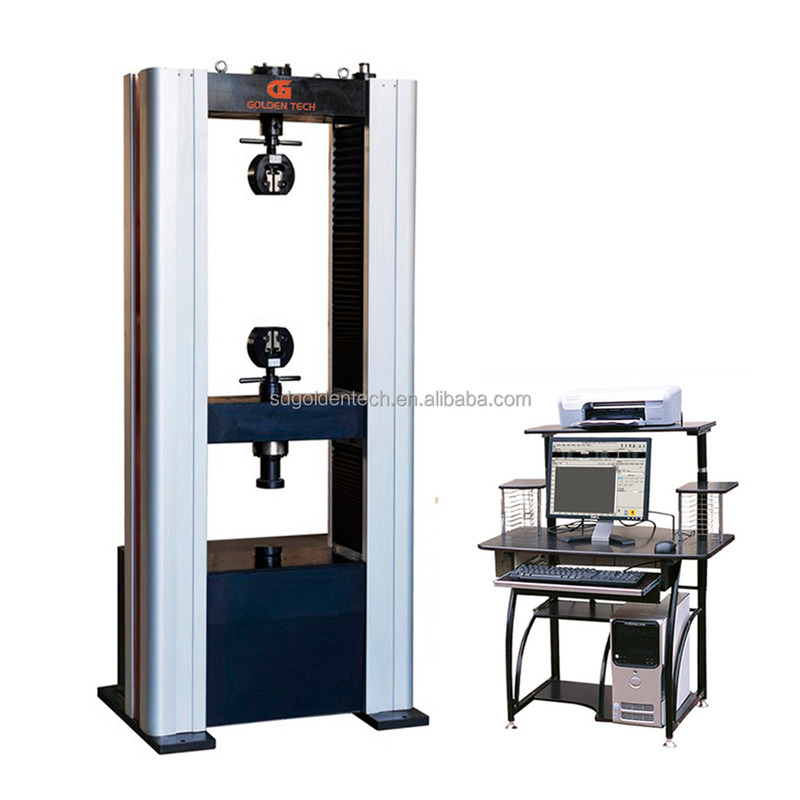

WDW 20kN 50kN 100kN 200kN 300kN Universal Tensile Testing Machine for metal steel plastic rubber matrix composite

Product Description

1. Applications & functions

These WDW Series Computerized Electromechanical Universal Testing Machines are mainly used to do tensile, compression and bending test of metal and non-metal materials. It is ideal testing machines for enterprises’ quality control department, teaching in university and colleges or scientific research institution, etc. It is calibrated according to ASTM E4 and ISO75001. It can meet test standards ISO 6892, ASTM E4, ASTM E8, ASTM A370, ASTM D638, ASTM D790, ASTM E4, EN 10002-4, EN 10002-1, ISO 7500-1, ASTM D1002 and so on. The testing materials are including Steel, Metal, Rubber, Plastic, Cord, Composite Materials, Cable, Wire, Aluminum, Copper, Textiles, Food, Packaging, Nonwoven etc.

2. Main Technical Specifications:

Model Specifications	WDW-5	WDW-10	WDW-20	WDW-50	WDW-100	WDW-200	WDW-300
Max Load Capacity (kN)	5	10	20	50	100	200	300
Load Accuracy	±0.5% of applied force
Load Resolution	Max. testing force 1/500000
Test Zones	Single	Dual (upper for tensile, lower for compression) or Single (lower for tensile, compression)
Test Speed Range	0.005-500 mm/min
Strain Accuracy	≤±0.5%
Crosshead Travel (mm)	700	600		650	650	550
Compression Space (mm)	-	500		500	500	600
Space Between Columns	-	400		550	550	560
Jaw dimension (mm)	0-3	0~7		0~14	0~14	0~20
Jaw dimension (mm)	-	φ4~φ9		φ4~φ14	φ4~φ20	Φ9~φ26
