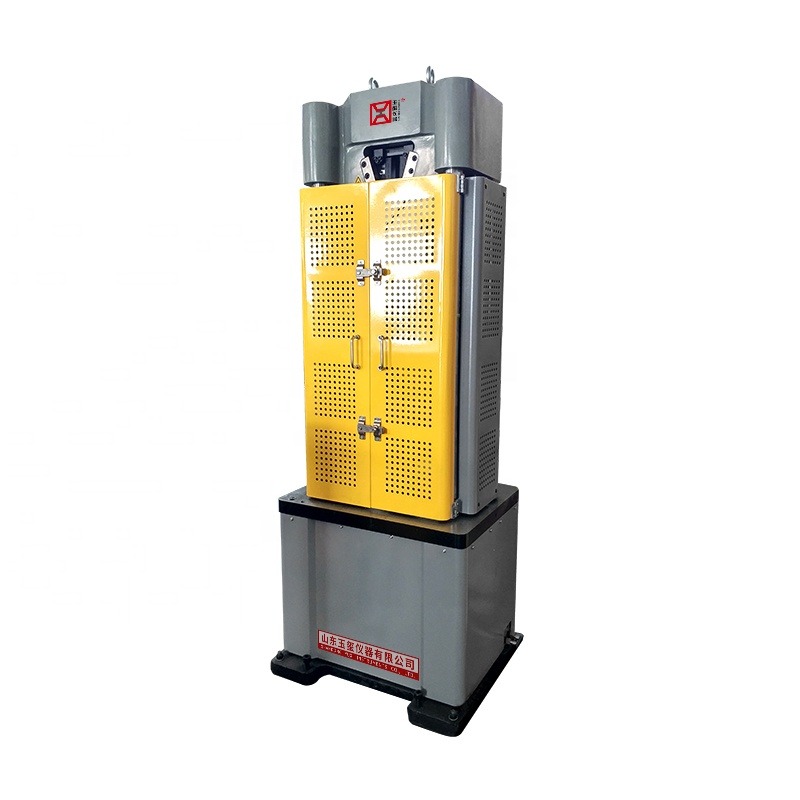

1000kn Universal Tensile Testing Machine

Computerized universal testing machine

1.Multifunction and Wide application

Integrated with electro-hydraulic servo automatic control, signal measurement, data acquisition, screen display, test results processing. It’s widely applicable for different test methods and different materials, especially for various metal and non-metal material, such as stretch, compression, bending, shearing and low cycle tests etc. It is an ideal material property testing equipment for research institutes, colleges and universities, quality supervision and industrial and mining enterprises.

2.Features

a. Multi-function integrated pump station, the whole machine structure is greatly optimized.

b. International well-known brands pump set and servo valve, high system reliability.

c. Based on the idea of "comprehensively improving test efficiency", all kinds of tests can be completed quickly.

d. The software system supports multi-language, multi-unit control, multi-test standard

e. Control system based on software, accurate testing, high degree of digitization.

f. Various accessories in stock.

Integrated pumping station

1. The electro-hydraulic servo drive oil circuit uses Load adaptive fuel inlet throttle loop. Not only the flow is stable and the pressure fluctuation is small, but also the energy consumption of the high-pressure overflow of the system is completely reduced. Therefore, the system can work steadily and reliably all year round without cooling device.

2. Both pump station and servo valve use international famous brand products. The system works for a long time stably and reliably. The complete set of pipe fittings adopts the special technology of our company, with excellent performance, reliable sealing and no oil leakage fault.

3. With independent reducing valve- reversing valve composite module realizing hydraulic jaw drive technology, the conflict between hydraulic clamping unit and servo hydraulic unit is solved thoroughly. Simplified operation and improved security.
