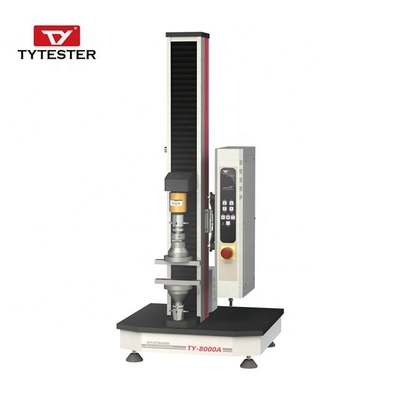

5KN Bend Testing 3-point Load Cell Small Size Table Universal Tensile Strength Testing Machine

1 Set
MOQ
5KN Bend Testing 3-point Load Cell Small Size Table Universal Tensile Strength Testing Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 1 Year
Customized support: ODM
Model Number: TY8000-A
Power: Electronic
Product name: Universal Testing Machine
Function: 3-point Bending Test
Standard: GB/T 2611, GB/T 16491, GB/T 12160, GB/T 16825
Measuring range: 0~5KN
Test speed: 0.001~1000mm/min
Test material: Plastic Film, Rubber Sheet, Rubber Glove, Ceramic Stick
Control: Computer System
Power supply: 220V ±10%, 500W
G.W./N.W.: 200/150kg
Machine Size: 520*480*1150mm
Informazioni di base
Model Number: TY8000-A
Termini di pagamento e spedizione
Packaging Details: PE film wrapping and Plywood Case.
Supply Ability: 200 Set/Sets per Year
Descrizione di prodotto
Product Description

Electronic universal testing machine is suitable for material analysis and inspection of engineering plastics, reinforced nylon, modified plastics, plastic profiles, plastic pipes, plastic sheets and films.
TY-8000A series of servo motor universal testing machine's performance reaches international advanced level, is widely used for testing the tensile elastic modulus, bending elastic modulus, compression modulus, yield strength, tensile strength, fracture strength, elongation at break, compression stress, compression strain, shear, peel, tear and other mechanical properties of various thermosetting and thermoplastic plastics.

Main Features

1. High rigidity, high precision, high transmission efficiency Panasonic servo motor and driver.
2. Planetary deceleration system drives the ball screw to realize the test loading process.
3. Advanced DSP+MCU all-digital closed-loop control system for controlling and measurement.
4. Easy-to-use software, multiple curve type and dynamic curve display.
5. Data acquisition frequency up to 1000Hz (need to be customized)
6. High speed data processing system.
7. Data can be reanalyzed through the graphical processing module to realize the second edit.
8. Excel report can be exported, or printed out directly.

Conform to Following Standards
4.1 GB/T2611<Testing Machine General Technical Conditions> and GB/T 16491<Electronic Universal Testing Machine>for manufacturing;
4.2 GB/T12160<Uniaxial testing machine with extensometer requirements> and GB/T16825<Tensile testing machine> for examination and acceptance;
4.3 Applicable ASTM, DIN, ISO, JIS, BS and other international.

Curve Type

Load – Time

Load - Displacement
Load - Extenstion
Extension - Time
Displacement - Time
Stress VS Strain

Specifications for TY8000-A Universal Testing Machine
Model
TY8000-A
Capacity(optional)
10kg, 20kg, 50kg, 100kg, 200kg, 500kg
Unit(Switchable)
Kg, lb, N, kN
Load Accuracy
≤±0.5%
Load Resolution
1/500000
Test force measurement range
0.4%-100%FS
Deformation measurement range
0.2%-100%FS
Power control rate adjustment range
0.01-5%FS/S
Power control rate relative error
Within Setpoint ±1%
Deformation rate adjustment range
0.02-5%FS/S
Deformation controlled rate relative error
Within Setpoint ±1%
Constant force, constant deformation,
constant displacement control
0.5%--100%FS
Stroke(exclude the grips)
650mm
Effective width
80mm
Test speed
0.001~1000mm/min
Speed Accuracy
≤±0.3%
Stroke Resolution
0.01mm
Dimension(WxDxH)
520×480×1150mm
Weight(approx..)
150kg
Power supply
220V±10%, 500W
Detailed Images
Part List
No.
Name
Details
Qty.
Brand
1
UTM
Mainframe
1pc
Tianyuan
1.1
Motor+Driver
Servo motor and driver
1set
Panasonic
1.2
Transmission system
Planetary Reducer
1set
Taiwan LM
2
Load Sensor
5KN
1set
IMG LOGICS(USA)
3
Grips
Tensile test grips
1 pair
Tianyuan
4
Pin
Used for fixing joints and fixtures
2pcs
Tianyuan
5
User Manual
1pc
Tianyuan
6
USB flash disk
With E-user manual inside
1pc
Tianyuan
7
Data cable
1pc
Tianyuan
8
Power cord
1pc
Tianyuan
9
Extensometer
1set
Tianyuan
10
Tools
Hex Wrenches kit
1set
Tianyuan
11
foot screw
4pcs
Tianyuan
12
Tracker Line
Spare parts for extensometer
1pc
Tianyuan
Maintainence
Item
Content
1 Installation and work
environment requirements
1.1 Smooth ground, good ventilation, no corrosive gas.
1.2 No strong source of electromagnetic radiation nearby.
1.3 There is adequate maintenance space around the equipment.
1.4 Environmental temperature:20℃~35℃
1.5 Relative humidity requirement:≤85%R.H.
2. Maintenance
    requirements
2.1 computer used in the test machine is not recommended to be connected to the
Internet.
2.2 Check whether the connected sensor range is correct before test if there are
multiple sensors.
2.3 Do not exit the software interface during the test to avoid errors.
2.4 After the test machine is finished, the surface of the table should be cleaned.
2.5 After cleaning, the fixture surface should be evenly sprayed with anti-rust oil.
2.6 Spray anti-rust oil on the fixture every 15 days if the test machine is not used for a long time.
Packing & Delivery
Packaging
Size
760*650*1300mm(LxWxH)
Weight
200KG



Packaging Details
The normal package is PE film wrapping and PLYWOOD box(Size: 800*600*1800mm, L*W*H).

We can also pack the machine according to customers' special request.
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service ON-LINE.
